fin seal vertical packaging machine

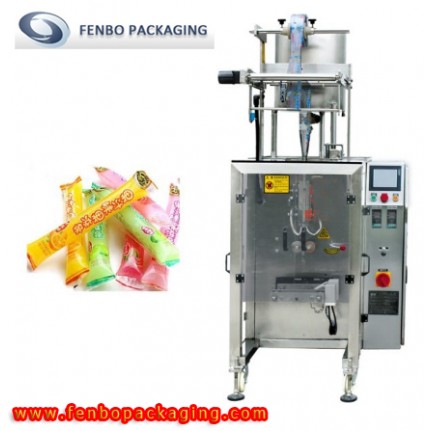

stick pack vffs packaging machine-FBSW2830A
|
Model number |
FBSW-2830A |
|
packaging machine types |
|
|
Application |
liquid/semi-liquid |
|
MOQ |
1set |
|
Leading time |
15-20days |
|
Packing |
Wooden carton |
For the FBSW-2830A, it is a kind of vffs packing machines which specialized for the packaging of liquid/semi-liquid vertical ffs packing the products into the stick pack style.
Feature
-This kind of vffs packing machine adopt by gravity feeding system, suitable for the packaging of liquid/semi-liquid products, such asbeverage, jelly, oil, yogurt, honey and etc.
-This model of stick pack machine adopt by frequency control, make sure a high precision measuring of products.
-Made of stainless steel, all machine structures are in accordance with food hygiene standards selected design, rust and durable, easy operation and maintenance, the material contact with the container material are food grade SUS304.
-Controller by PLC, operate by touch screen, horizontal and vertical sealing temperature can adjustable.
-The machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.
-Photocell control system can realize automatic mark-tracking- cutting.
-Intelligent temperature control by temperature controller, let the sealing temperature better and balanced.
-Optional Multi language for chosen, we could offer all the button and setting list and after got your translation and we put into the program.
Technical Parameters
|
Packaging material |
beverage, jelly, oil, yogurt, honey and etc. |
|
|
Available filling capacity |
5g-50g |
|
|
vffs sachet style |
stick pack |
|
|
Roll film width |
≤300mm |
|
|
Finished pouch size(min to max) |
Length: |
50mm-200mm |
|
width: |
40mm-150mm |
|
|
ffs packing speed(sachet/min) |
60-100 |
|
|
Material of machinery |
SUS304 |
|
|
Type of materialfeeding system |
auger feeding |
|
|
Voltage |
AC 220V /50/60Hz |
|
|
Total power |
1.2KW |
|
|
Machine weight |
300KG |
|
|
Machine dimension |
1260mm*930mm*1940mm |
|

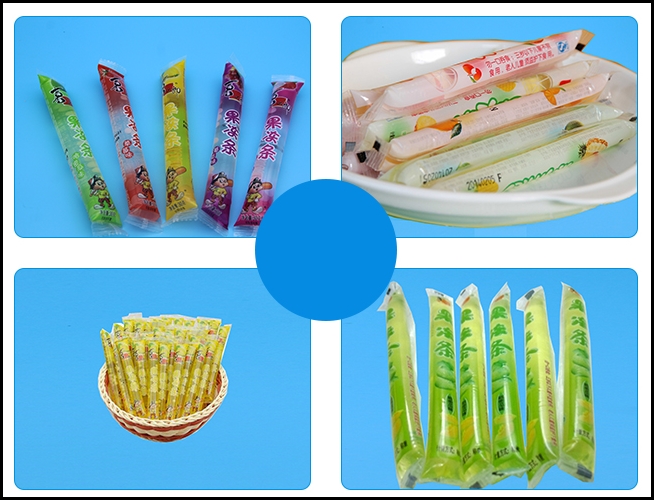

Sachet style of form fill seal
Working process of vffs packing machine FBSW-2830A
Film rolling->forming->filling->sealing->finishing
Pneumatic components of vffs packing machine FBSW-2830A
|
Standard ( High ) |
||
|
Touch Screen |
Weinview |
Taiwan |
|
PLC |
Siemens |
Germany |
|
Temperature control |
Huibang |
China |
|
Servo motor |
Yichuan |
China |
|
Switch、Button、Relay |
Schneider / ABB |
Germany |
|
Photoelectric detecting element |
Hugong |
China |
|
Bearing |
/ |
Japan |
|
Pneumatic element |
Airtac |
Taiwan |
