fin seal vertical packaging machine
confezionatrice verticale automatica alimenti-FBSW320B
Model number |
FBSW-320B |
packaging machine types |
|
Application |
granules or powder |
MOQ |
1set |
Leading time |
20-25days |
Packing |
Wooden carton |

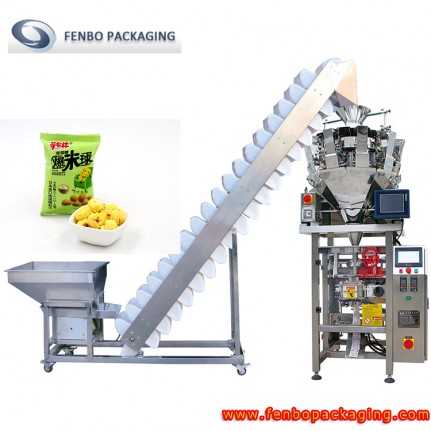

For the FBSW-320B confezionatrice verticale, it is a kind of confezionatrice verticale automatica which specialized for the packaging of granules or powder and vertical packaging into the pillow seal pouch style.
Feature
-This kind of confezionatrice verticale is suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as: nails, screws, puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.
-This model of confezionatrice verticale alimenti equipped with multi-heads electronic weigher, precise positioning with servo film transporting system, excellent complete machine performance and nice packing
-Made of stainless steel, all machine structures are in accordance with food hygiene standards selected design, rust and durable, easy operation and maintenance, the material contact with the container material are food grade SUS304.
-Controller by PLC, operate by touch screen, horizontal and vertical sealing temperature can adjustable.
-This machine completes the whole procedure of filling, bagging, date printing, charging (exhausting) automatically.
-Photocell control system can realize automatic mark-tracking- cutting.
-Intelligent temperature control by temperature controller, let the sealing temperature better and balanced.
-Optional Multi language for chosen, we could offer all the button and setting list and after got your translation and we put into the program.
Technical Parameters
Model |
SW-320B |
SW-420B |
|
Form filling and sealing speed |
30-70bag/min |
30-80bag/min |
|
Roll film width |
≤320 |
≤420 |
|
vffs bags style |
pillow seal pouch |
||
Available packaging capacity |
50g-600g |
50g-1000g |
|
Finished pouch size (min to max) |
Length: |
80mm-200mm |
80mm-300mm |
width: |
45mm-150mm |
80mm-200mm |
|
Power supply |
3KW |
3.5KW |
|
Voltage |
220V 50/60 HZ |
||
Material of machinery |
SUS304 |
||
Material contact parts |
SUS316 |
||
Machine weight |
800kg |
1000kg |
|
Machine dimension |
2000*1000*2000mm |
2500*1500*3200mm |
Sachet style of form fill seal
Working process of confezionatrice verticale FBSW-320B
Film rolling->forming->filling->sealing->finishing
Pneumatic components
Standard ( High ) |
||
Touch Screen |
Weinview |
Taiwan |
PLC |
Siemens |
Germany |
Temperature control |
Huibang |
China |
Servo motor |
Yichuan |
China |
Switch、Button、Relay |
Schneider / ABB |
Germany |
Photoelectric detecting element |
Hugong |
China |
Bearing |
/ |
Japan |
Pneumatic element |
Airtac |
Taiwan |
