fin seal vertical packaging machine
Introduction

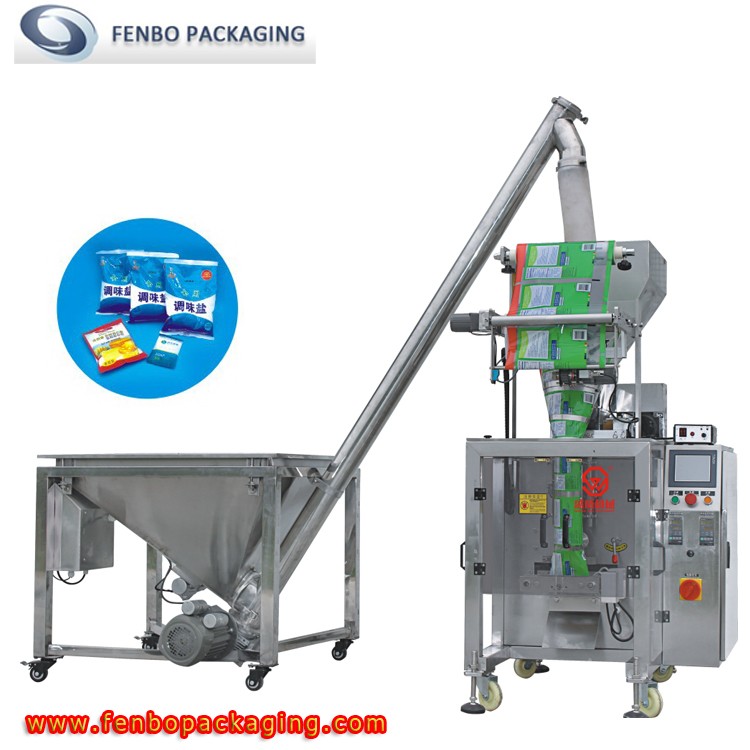

For the spice pouch packing machine(FB-DF-50B2C),it is the upgrade version of FB-DF-50B2,this kind of vffs packaging machine is special customized for powder,fine granules or tablet,as per different packaging products,the material feeder is optional.
Technical Parameters
Packaging material |
oatmeal,soy milk powder,puffed food,popcorn,seeds,tea leaf etc |
|
Available filling capacity |
10-40g |
|
Form fill seal bag style |
central seal pouch |
|
Finished pouch size(min to max) |
Length: |
50mm-180mm |
width: |
40mm-140mm |
|
Vertical form fill speed(sachet/min) |
30-50 |
|
Material of machinery |
SUS304 |
|
Material contact parts |
SUS316 |
|
Additional components of machine |
screw feeder |
|
turntable feeder(optional) |
||
Electronic scale(optional) |
||
Power supply |
AC 380V /50Hz (customized based on different voltages) |
|
Total power |
2.5KW |
|
Machine weight |
350KG |
|
Machine dimension |
920mm*1000mm*2100mm |
|
vffs machine video |
working process
film rolling->forming->filling->sealing->finishing
pneumatic components
