manual filling machine for spout doypack

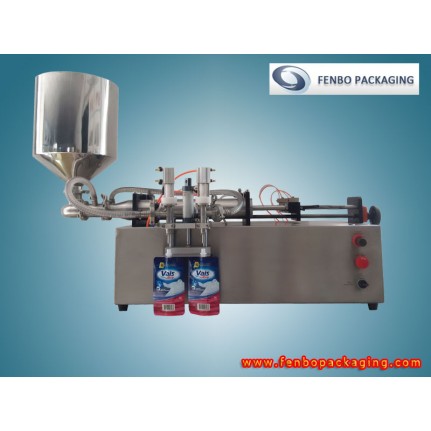

hand feeding female spout pouches pack bag filling packaging machine-FBJFII1000
|
Model number |
FB-JF-II-1000 |
|
|
Application |
Filling product |
high/low flowing of fluids |
|
Pouch style |
female/normal spout pack bag |
|
|
types of spout pouch filler machine |
||
|
MOQ |
1set |
|
|
Leading time |
25-30days |
|
|
Packing |
Wooden carton |
|
spout bag filling machine,hand feeding spout pouches filling machine,spout bag packaging machine
Introduction
For the FB-JF-II-1000, it is a kind of customized version hand feeding spout bag packaging machine (upgrade based onFB-KGF-I), specialized for filling the pouch equipped female(capless) spout which designed to work with filling and dispensing systems such as liquid soap, sanitizer and etc.
Feature
-This kind of spout bag filling machine uses the compressed air the for controlling, it has high safety especially suitable for use under the explosion-proof requirements.
-It won't generate static electricity and hemp electricity phenomenon; the machine does not need to connect the grounding wire.
-Due to the pneumatic controlling and fixed filling volume, the filling volume is therefore characteristic with high precision, which can be controlled within 0.3%.(this is basis on maximum filling volume).
-In the case of emergency stop, you just need to turn off the pneumatic switch, the piston will be pulled automatically back to the starting position, and the machine will stop filling.
-Hand-held capping system solve the plastic cap locking problemperfectly, greatly improve whole the working efficiency.
Technical Parameters
|
Filling material |
liquid soap, sanitizer and etc. |
|
|
Available filling capacity |
250ml-500ml |
|
|
Quantity of machine filling nozzle |
2 |
|
|
spouted pouch filling speed |
auto version |
2400 pouch/hour |
|
manual version |
adjusted by yourself |
|
|
Material of machinery |
SUS304 |
|
|
Power supply |
AC 380V /50Hz (customized based on different voltages) |
|
|
Using air pressure |
0.5～0.6Mpa |
|
|
Filling error(for max volume) |
Within ±0.5% |
|
|
Machine dimension |
1000mm×450mm×550mm |
|
|
Materials hopper |
40KG |
|
Application
Working principle of spout bag filling machine FB-KGF-II-1000
-fixed position filling (auto version or manual version)
-manual pouch discharging
Characteristic of FB-KGF-II-1000
-The pushing and pulling of the air cylinder, it drives the cylinder piston do the reciprocating motion, which makes the material cylinder to generate the negative pressure.
-When the cylinder is pushed forward, it pulls the piston to the back, and inside the material cylinder, the negative pressure absorbs the material into the inlet pipe from the material hopper.
-When the cylinder pulling back, it pushing the piston forward, the material will be absorbed to the filling mouth from the pipe, then, it fills to the empty pouch(the filling head open and close automatically when the material is absorbed in and out).
-This piston type filling machine is a single, simple mechanical action for the each filling, so it has a high filling accuracy and stability for spout pouch.
