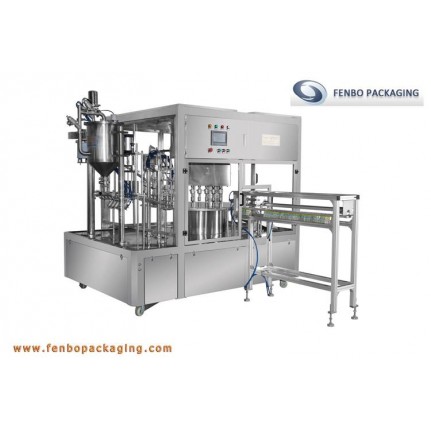

Spout doypack pouch packaging filling and capping machine-FBZCX5B
Model number |
FB-ZCX-5B |
|||
Application |
Filling product |
Liquid/semi-liquid |
||
Pouch style |
||||
types of pouch filling machine |
||||
MOQ |
1set |
|||
Leading time |
standard configuration |
35days |
||
non-standard configuration |
45days |
|||
Packing |
Wooden carton |
Introduction
For the FB-ZCX-5B doypack machine, this is the standard configuration model in our 5 filling nozzle full automatic spout pouch machine series, additionally equipped servo-driven for filling and capping, cap hopper, CIP system connection, dust proof cover and etc. this model of doypack machine is suitable for the production with requirement on the high hygiene and working effection.
Feature
-The model of doypack machine is clean and bright, and is made by stainless steel except rack part reach to the existing standard of food industry
-Electric and pneumatic combined driving are used, resulting in stable driving, Filling, downward-capping and cap-screwing are fully automatic in order to save man power and reduce cost
-High efficiency, several pouch bags can be filled, downward-capping and cap-screwing at the same time
-Revision device of photoelectric sensors are installed in the machine, If cap jam in the machine, it can timely alert operator to inspect and adjust the equipment in order to avoid waste
-According to customer’s demand, we can add or decrease auto bag feeding device, cover, PLC, CIP connect, nitrogen gas connect etc.
-Piston quantitative filling, precise quantitative filling, no drip leakage filling head
-Filling quantity can be adjusted, automatic capping, precise capping, solid capping, no leakage, adjustable capping speed
-Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on
-High reliability, convenient operation, wide applicability, high performance.
Technical Parameters
Filling material |
All kind of liquid or semi liquid |
Available filling capacity |
50ml-300ml |
Quantity of machine filling nozzle |
5 |
spout pouch filling and capping speed(pouch/hour) |
5000-7000 |
Material of machinery |
#304 stainless |
Power supply |
AC 380V /50Hz (customized based on different voltages) |
Using air pressure |
0.5~0.7Mpa |
Maximum air consumption |
0.5m3/min |
Machine dimension |
3300*2440*1900mm(included the pouch loader) |
Additional components of machine |
CIP clean system |
Dust proof cover |
|
Plastic cap elevator |
Basic component of doypack machine FB-ZCX-5B
1-Machine bottom flame
2-Pouch loader
4-Dusty-proof cover
5-Pneumatic control cabinet
6-Material pump (hopper)
7-Filling device group
8-Cleaning device group
10-Vibrating tray & plastic cap loading device
11-Capping device group
Application
Working process of doypack machine FB-ZCX-5B
-Fixed position filling
-Spout cleaning
-Cap loading and capping
-Pouch discharging
Pneumatic components
Imported pneumatic components: Schneider, Mitsubishi, Omron, Siemens and etc., let the operation system more stable and reliable
