doypack filling machine

Introduction

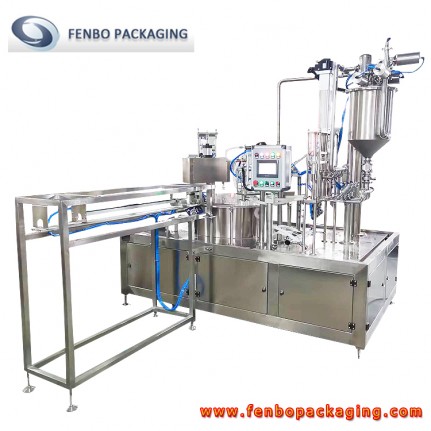

For the FB-ZCX-3A, this is the standard configuration model of our ZCX-3 series doypack filling and sealing machine, additionally equipped with traditional permanent magnet filling and capping/plastic cap elevator. this model is suitable for the production with requirement on the high hygiene and working effect.

Feature

-The model of doypack filling machine is clean and bright, and is made by stainless steel except rack part reach to the existing standard of food industry.

-Electric and pneumatic combined driving are used, resulting in stable driving, Filling, downward-capping and cap-screwing are fully automatic in order to save man power and reduce cost.

-High efficiency, several pouch bags can be filled, downward-capping and cap-screwing at the same time.

-Revision device of photoelectric sensors are installed in the machine, If cap jam in the machine, it can timely alert operator to inspect and adjust the equipment in order to avoid waste.

-According to customer’s demand, we can add or decrease auto bag feeding device, cover, PLC, CIP connect, nitrogen gas connect etc.

-Piston quantitative filling, precise quantitative filling, no drip leakage filling head.

-Filling quantity can be adjusted, automatic capping, precise capping, solid capping, no leakage, adjustable capping speed.

-Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.

-High reliability, convenient operation, wide applicability, high performance.

Technical Parameters

Basic component

1-Machine bottom flame

2-Pouch loader

3-Machine turntable

4-Pneumatic control cabinet

5-Material pump (hopper)

6-Filling device group

7-Cleaning device group

8-Plastic cap elevator(optional)

9-Vibrating tray& plastic cap loading device

10-Capping device group

Application

Working process of ZCX-3A doypack filling machine

-Pouch loading

-Fixed position filling/Air blowing

-Spout cleaning

-Plastic cap loading and capping

-Pouch discharging

Pneumatic components

Imported pneumatic components: Schneider, Mitsubishi, Omron, Siemens and etc., let the operation system more stable and reliable.

*Partial pneumatic components brand can be optional by customer’s requirement
