plastic cup filling machine

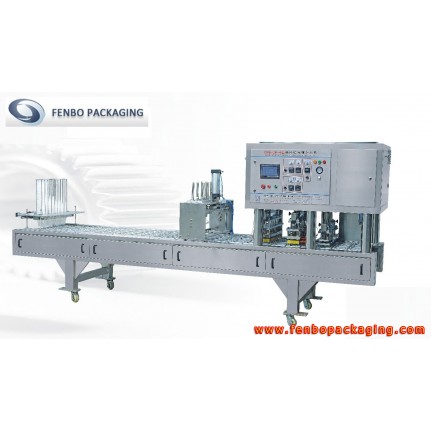

pp plastic cup filling sealing packaging machine-FBCFBB
|
Model number |
FB-CFB-B |
|
Filling product |
semi-liquid |
|
Types of packaging machines |
plastic cup packaging machine |
|
MOQ |
1set |
|
Leading time |
35-45days |
|
Packing |
Wooden carton |
Introduction
For the FB-CFB-B cup filling sealing machine, it is a kind of automatic plastic cup packing machine specialized for the filling of jelly and so on semi liquid products which packaged by the middle size plastic cup and lidding film.
Feature
-This kind of cup filling sealing machine is suitable for the filling and sealing of jelly, pudding, drink, juice, milk, bean products, rice wine, rice wine drink, jam, Guiling jelly, pickles, thick broad-bean sauce and etc.
-This model of plastic cup packing machine adopts latest technologies, such as no drop, no splash, no bubble filling, PID intelligent temperature controller, floating seal, PLC + touch panel control, inverter speed control etc.
-This machine can fill and seal multi-cups at one time, high effectively, accuracy, quickly.
-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.
-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.
-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.
-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.
-Optional Device: fruit grain feeding, Dust proof cover, CIP system, Date inkjet and etc.
-The machine can be customized made according to your requirements and your sample cup.
-User friendly setting done via touch-screen, optional Multi language for chosen
-All components adopt international famous brand. And the machine can adopt PLC system according to your requirements.
-The other function can be added according to your requirements such as CIP clean system, UV and etc.
Technical Parameters
|
Model |
CFB8-2B |
CFB8-4B |
CFB8-6B |
CFB8-8B |
CFB8-10B |
CFB8-12B |
CFB8-16B |
CFB8-24B |
|
Available filling capacity |
≤450ml |
≤300ml |
≤80ml |
|||||
|
Filling and sealing speed(cup/min) |
1500-2400 |
3600-5000 |
5400-7200 |
7200-9600 |
9000-12000 |
11000-14800 |
14800-19800 |
22000-28800 |
|
Material of machinery |
SUS304 |
|||||||
|
Material contact parts |
SUS316 |
|||||||
|
Power supply |
AC 380V /50Hz |
|||||||
|
Speed control |
frequency control |
|||||||
|
Working Pressure |
0.6-0.8MPa |
|||||||
|
Air consumption(m³/min） |
0.35 |
0.5 |
0.6 |
0.7 |
0.75 |
0.85 |
0.95 |
1.1 |
|
Power(KW) |
4.5 |
6 |
7 |
7.5 |
8 |
8.5 |
8.8 |
9.8 |
Packaging materials
Working process of cup filling sealing machine FB-CFB-B
Cup Auto feeding→Dust Clean→Filling 1→Filling 2→Liquid Level Control→Sealing film unwinding→Date Printing→Flat Sealing→Photoelectric correction→line sealing→trimming→products push out and conveying
Pneumatic components of cup filling sealing machine FB-CFB-B
