Introduction

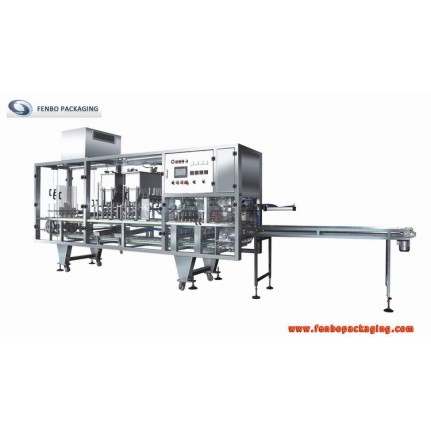

For the FB-CFB-10,it is a kind of yogurt cup filling and sealing machine specialized for the filling of yogurt which packaged by the plastic yogurt cups and foil lids.
Feature
- This cup fill and seal machine is suitable for the filling and sealing of yogurt
- This machine required the foil lids as the sealing materials
- This machine can fill and seal multi-cups at one time, high effectivity,accuracy,quickly.
- Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.
- Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.
- All components adopt international famous brand .and the machine can adopt PLC system according to your requirements.
- The other function can be added according to your requirements such as CIP clean system, UV and etc.
Technical Parameters of FB-CFB-10
Filling material |
yogurt |
||
Speed mold |
transducer |
||
Available filling capacity |
《400ml |
||
Sub mold number |
FB-CFB-B4 |
FB-CFB-B6 |
FB-CFB-B8 |
fill and seal speed(cup/hour) |
3600-4800 |
4800-7200 |
7200-9600 |
Air consumption(3/min) |
0.5 |
0.6 |
0.7 |
Total powder(KW) |
6.5 |
8.5 |
10.5 |
Material of machinery |
SUS304 |
||
Material contact parts |
SUS316 |
||
Power supply |
AC 380V /50Hz (customized based on different voltages) |
||
Using air pressure |
0.6~0.8Mpa |
||
Machine dimension |
3.5mx0.8mx1.7m |
3.6mx0.8mx1.7m |
3.5mx1.2mx1.7m |
Optional components of machine |
CIP connection |
||
Dust proof cover |
|||
Date coding machine |
Packaging materials
working process
cup feeding->fixed position filling->lids feeding->positioning/lids/vacuum->cup discharging
pneumatic components
