plastic cup filling machine
cup filling and sealing machine
Introduction

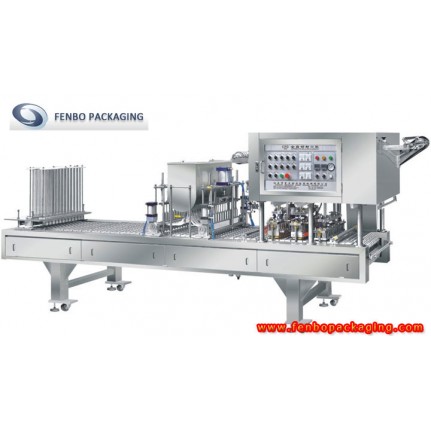

For the FB-CFB-A,it is a kind of high speed automatic cup filling machine specialized for the filling of jelly and so on semi liquid products which packaged by the small plastic cup and sealing film.
Feature
- This cup filling and sealing machine is suitable for the filling and sealing of jelly,pudding,chocolate jam and so on semi-liquid
- This machine required the sealing film as the sealing materials
- This machine can fill and seal multi-cups at one time, high effectivity,accuracy,quickly.
- Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.
- Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.
- All components adopt international famous brand .and the machine can adopt PLC system according to your requirements.
- The other function can be added according to your requirements such as CIP clean system, UV and etc.
Technical Parameters of FB-CFB-A
Filling material |
jelly,pudding,chocolate jam and etc |
|||||
Speed mold |
Servo motor |
|||||
Available filling capacity |
《30ml |
|||||
Sub mold number |
FB-CFB-A20 |
FB-CFB-A24 |
FB-CFB-A36 |
FB-CFB-A40 |
FB-CFB-A48 |
FB-CFB-A60 |
fill and seal speed(cup/hour) |
18000-24000 |
20000-29000 |
30000-44000 |
36000-48000 |
43000-58000 |
54000-72000 |
Air consumption(3/min) |
1.5 |
1.5 |
2 |
2 |
2.5 |
2.5 |
Total powder(KW) |
18 |
20 |
22 |
22 |
25 |
25 |
Material of machinery |
SUS304 |
|||||
Material contact parts |
SUS316 |
|||||
Power supply |
AC 380V /50Hz (customized based on different voltages) |
|||||
Using air pressure |
0.5~1.2Mpa |
|||||
Machine dimension |
4.5mx1.2mx1.7m |
|||||
Optional components of machine |
CIP connection |
|||||
Dust proof cover |
||||||
Date coding machine |
Packaging materials
working process
cup feeding->fixed position filling->lidding filmfeeding/lidding/vacuum->die cutting->cup discharging

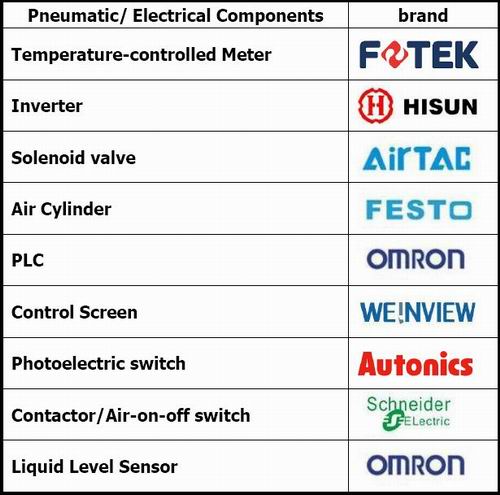

pneumatic components
