3 side seal vertical packing machine
vffs packaging equipment
Introduction

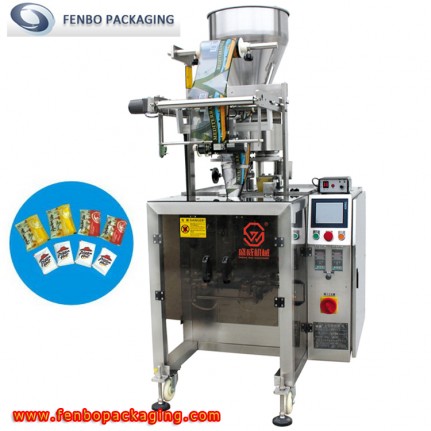

For the FBSW-1328A, it is a kind of vffs packaging machines which specialized for the packaging of powder vertical ffs packing the products into the 3 side seal sachet style.
Feature
- This machine adopt by auger feeding system,suitable for the packaging of powder products,such as coffee powder,milk powder and etc.
- This machine adopt by frequency control,make sure a high precision measuring of products.
- Made of stainless steel,all machine structures are in accordance with food hygiene standards selected design,rust and durable, easy operation and maintenance,the material contact with the container material are food grade SUS304.
- Controller by PLC, operate by touch screen, horizontal and vertical sealing temperature can adjustable.
- The vffs packaging equipment completes the whole procedure of filling, bagging, date printing,charging(exhausting) automatically.
- Photocell control system can realize automatic mark-tracking- cutting.
- Intelligent temperature control by temperature controller,let the the sealing temperature better and balanced.
- optional Multi language for chosen,we could offer all the button and setting list and after got your translation and we put into the program.
Technical Parameters of FBSW-1328A
Packaging material |
coffee powder,milk powder and etc |
|
Available filling capacity |
5g-50g |
|
vffs sachet style |
3 side seal sachet |
|
Roll film width |
≤280mm |
|
Finished pouch size(min to max) |
Length: |
50mm-130mm |
width: |
40mm-140mm |
|
ffs packing speed(sachet/min) |
60-100 |
|
Material of machinery |
SUS304 |
|
Material contact parts |
SUS316 |
|
Type of material feeding system |
auger feeding |
|
Voltage |
AC 220V /50/60Hz |
|
Total power |
1.52KW |
|
Machine weight |
300KG |
|
Machine dimension |
1260mm*930mm*1700mm |

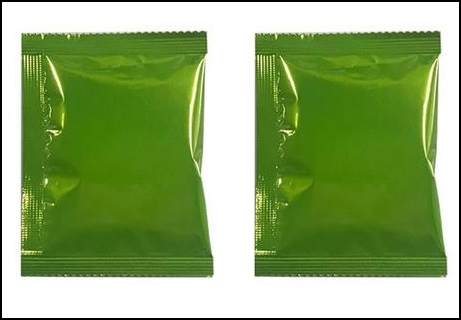

Sachet style of form fill seal
working process
film rolling->forming->filling->sealing->finishing
pneumatic components
Standard ( High ) |
||
Touch Screen |
Weinview |
Taiwan |
PLC |
Siemens |
Germany |
Temperature control |
Huibang |
China |
Servo motor |
Yichuan |
China |
Switch、Button、Relay |
Schneider / ABB |
Germany |
Photoelectric detecting element |
Hugong |
China |
Bearing |
/ |
Japan |
Pneumatic element |
Airtac |
Taiwan |
Machine material |
# 304 stainless steel |
/ |
