4 side seal vffs machine
vertical bagging machine
Introduction

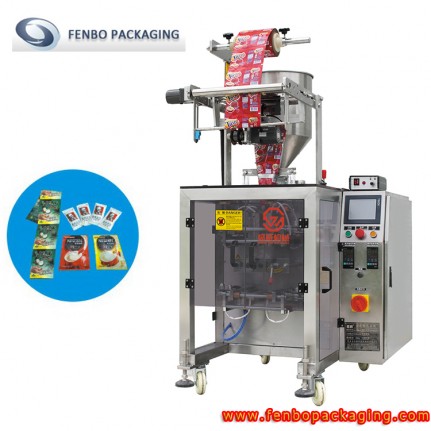

For the FBSW-1528,it is a kind of vertical bagging machines which specialized for the packaging of semi-liquid vertical ffs packing the products into the 4 side seal sachet style.
Feature
- This machine adopt by high precision pump press feeding system,suitable for the packaging of semi-liquid products,such as jelly, shampoo,ketchup sauce,chilli sauce,oil and etc.
- This machine adopt by frequency control,make sure a high precision measuring of products.
- Made of stainless steel,all machine structures are in accordance with food hygiene standards selected design,rust and durable, easy operation and maintenance,the material contact with the container material are food grade SUS304.
- Controller by PLC, operate by touch screen, horizontal and vertical sealing temperature can adjustable.
- The vertical bagging machine completes the whole procedure of measuring,filling, bagging,date printing,charging(exhausting) automatically.
- Photocell control system can realize automatic mark-tracking- cutting.
- Intelligent temperature control by temperature controller,let the the sealing temperature better and balanced.
- Can be customized the language of touch screen.
Technical Parameters of FBSW-1528
Packaging material |
jelly, shampoo,ketchup sauce,chilli sauce,oil and etc |
|
Available filling capacity |
10ml-110ml |
|
vffs sachet style |
4 side seal sachet |
|
Roll film width |
≤280mm |
|
Finished pouch size(min to max) |
Length: |
50mm-150mm |
width: |
25mm-140mm |
|
ffs packing speed(sachet/min) |
60-100 |
|
Material of machinery |
SUS304 |
|
Material contact parts |
SUS316 |
|
Type of materialfeeding system |
high precision pump press feeding system |
|
Voltage |
AC 220V /50/60Hz |
|
Total power |
1.5KW |
|
Machine weight |
300KG |
|
Machine dimension |
1300mm*960mm*1700mm |
Sachet style of form fill seal
working process
film rolling->forming->filling->sealing->finishing
pneumatic components
Standard ( High ) |
||
Touch Screen |
Weinview |
Taiwan |
PLC |
Siemens |
Germany |
Temperature control |
Huibang |
China |
Servo motor |
Yichuan |
China |
Switch、Button、Relay |
Schneider / ABB |
Germany |
Photoelectric detecting element |
Hugong |
China |
Bearing |
/ |
Japan |
Pneumatic element |
Airtac |
Taiwan |
Machine material |
# 304 stainless steel |
/ |
