plastic food containers filling and sealing packing machine

plastic container sealing machine

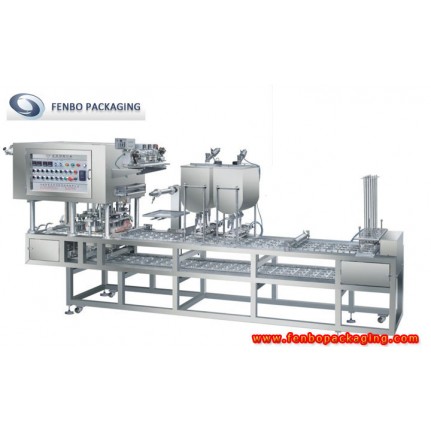

plastic food containers filling and sealing packing machine-FBCFD4

Model number	FB-CFB-4
Filling product	liquid/semi-liquid
sealing machine types	plastic food container sealing machine
MOQ	1set
Leading time	25-35days
Packing	Wooden carton

Product Details

filling and sealing machine

Introduction

For theFB-CFB-4, it is a kinds of full-automatic food container packing machine specialized for the filling ofice cream, sauce, pickled vegetable, rice wine and etcand so on liquid/semi-liquid which packaged by the tall plastic food containers and sealer film.

Feature

-This kind of filling and sealing machine is suitable for the filling and sealing of ice cream, sauce, pickled vegetable, rice wine and etc.

-This machine required the sealer film as the sealing materials.

-This model of food filling and sealing machine adopts latest technologies, such as no drop, no splash, no bubble filling, PID intelligent temperature controller, floating seal, PLC + touch panel control, inverter speed control etc.

-This machine can fill and seal multi-cups at one time, high effectively, accuracy, quickly.

-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.

-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.

-Adopts photoelectric tracking system to check and adjust the sealing film by checking the film mark.

-Pneumatic and electric combing in this machine to make productivity stability, quality reliable and high effectively, save energy, it is the pioneer machine in the fields.

-Optional Device: fruit grain feeding, Dust proof cover, CIP system, Date inkjet and etc.

-The machine can be customized made according to your requirements and your sample cup.

-User friendly setting done via touch-screen, optional Multi language for chosen.

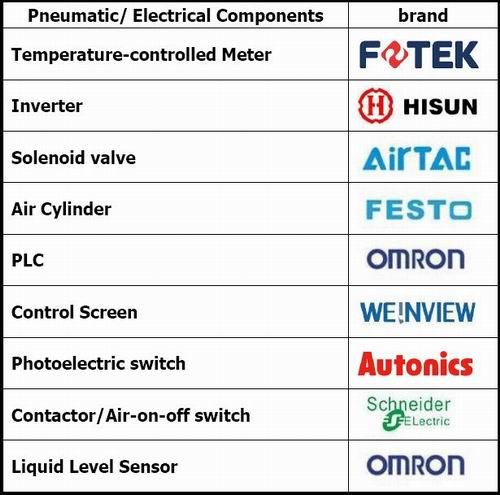

-All components adopt international famous brand. And the machine can adopt PLC system according to your requirements.

-The other function can be added according to your requirements such as CIP clean system, UV and etc.

Technical Parameters

Filling material	ice cream, sauce, pickled vegetable, rice wine and etc
Speed mold	transducer
Available filling capacity	《500ml
Sub model number	CFD4-2		CFD4-3	CFD4-4
fill and seal speed(cup/hour)	1200-2400		1800-3600	2400-4800
Air consumption(3/min)	0.4		0.5	0.6
Total powder(KW)	5.5		6	7
Material of machinery	SUS304
Power supply	AC 380V /50Hz (customized based on different voltages)
Using air pressure	0.6-0.8Mpa
Machine dimension	3.5mx0.8mx1.7m	3.6mx0.8mx1.7m		3.6mx1.2mx1.7m
